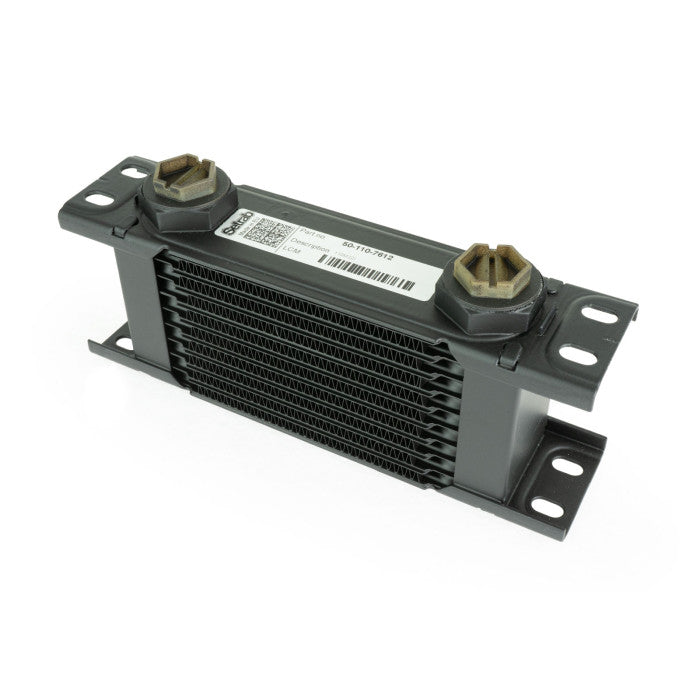

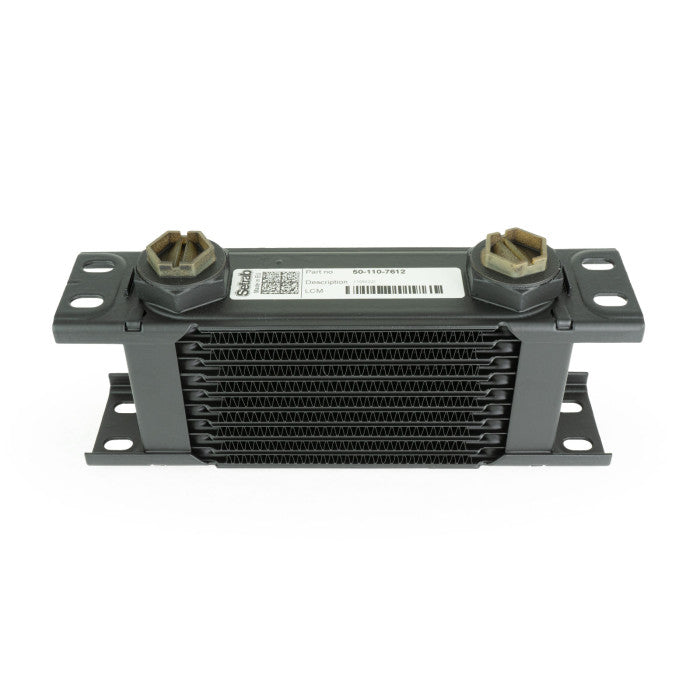

Setrab PROLINE 10 Row Oil Cooler 210mm Length (Series 1) M22 Female
Setrab PROLINE 10 Row Oil Cooler 210mm Length (Series 1) M22 Female

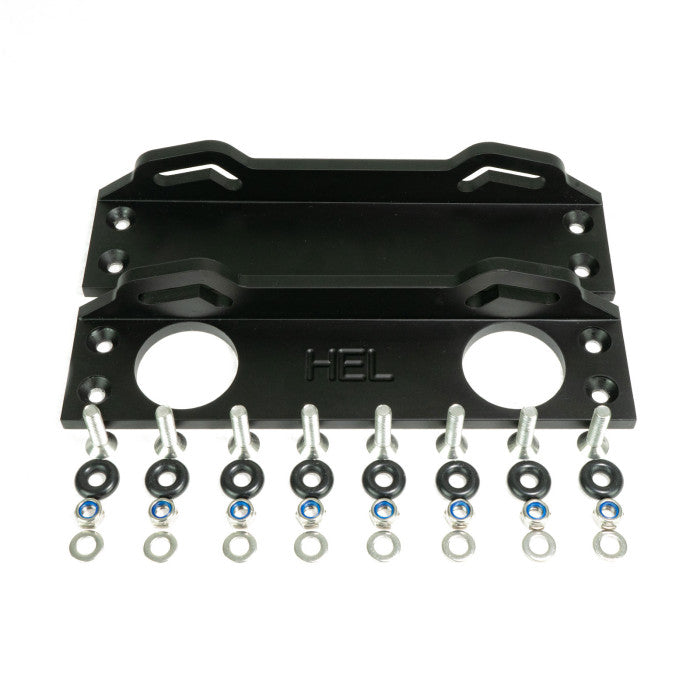

No Brackets / No Adapters
Brake-Shop Unit 2 Foothold Enterprise Village
SA15 2DS
Brake-Shop Unit 2 Foothold Enterprise Village
Llanelli SA15 2DS
United Kingdom
Introducing Setrab, the #1 supplier of high-performance oil coolers trusted by winning motorsport teams across the world. Designed for the most demanding racing environments, Setrab oil coolers are the ultimate choice for racing cars, motorcycles, tuners and even motorhomes and towing vehicles. With Setrab, you can rely on unparalleled quality and reliability.
The Setrab PROLINE oil cooler series offers versatile mounting options, allowing installation in front or behind radiators and air condensers. Their coolers are designed to be placed within the airflow path for optimal cooling performance. Additionally, the PROLINE range features special M22 x 1.5 female ports, enabling easy integration with a variety of AN size hoses. This adaptability simplifies the installation process and caters to different setups.
When you choose Setrab, you're investing in a cooling solution that has been rigorously tested and proven on the track. Their oil coolers deliver exceptional performance and reliability, ensuring your engine stays cool even under the most demanding conditions. With Setrab, you can experience the difference in performance, longevity, and peace of mind that comes from using the best in the business.
Dimensions
| Rows | 10 |
| Length (L) | 210mm |
| Height (H) | 76mm |
| Depth (D) | 50mm |
| Working Pressure | 0-10 bar(g) dynamic |
| Pressure Pulsation Endurance | 200k pulsations, 0-10 bar(g), 2 Hz, 60°C oil temp |
| Max Pressure | 12 bar(g) |
| Burst Pressure | 37 bar(g) |
| Pressure Test | 10 bar(g) |
| Leak Test | 4 bar(g) |
| Working Temperature | -40°C to 150°C |
| Corrosion Endurance | 20 days according to SWAAT G85-94 A3 |
| Inner Cleanliness | ISO 4406 16/14 |
| General Dimensional Tolerances | ISO 2768-v |
| Material | Aluminium alloys |
| Max Connection Tightening Torque | 40 Nm |
