Mocal Billet Oil Sandwich Plate With Sender Take Off

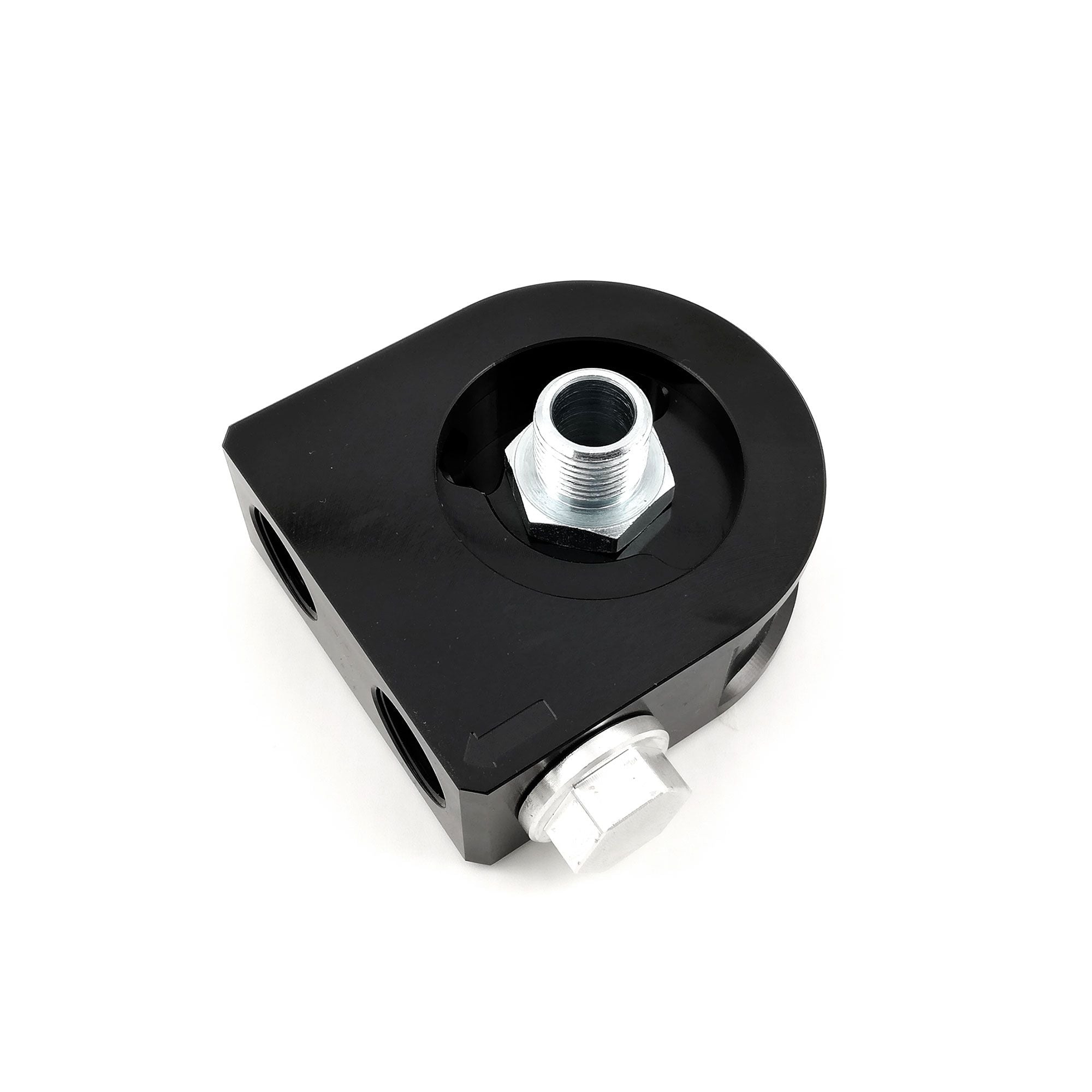

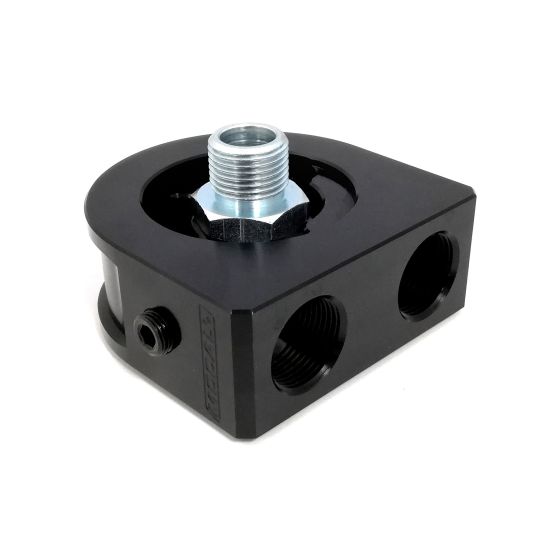

These billet aluminium sandwich plates from Mocal provide an oil feed and return for remote oil devices such as oil coolers. Suitable for vehicles with spin on oil filters, the plate fits between the oil filter and engine and screws into place via the male / female centre bolt. This bolt also allows the oil filter to be screwed into the plate. They also have 2 x female 1/8" NPT ports to allow fitment of sender units (thermostatic plates only have 1 x port)

• Provides an oil feed and return for external oil coolers
• M22 x 1.5 female ports. A range of adaptors to suit various plumbing options are available separately.
• Robust billet aluminium construction
• Suitable for engines with screw on oil filters
• Options available for most engine types
• Includes take off port(s) for fitting sender units

Mocal sandwich plates are available with a range of different oil filter thread types to suit different engines. They are suitable for oil filters with a 76mm diameter.

Thermostatic versions of the sandwich plates are available. These contain a wax stat which only allows oil to flow to the cooler once the temperature reaches 80°C. This provides faster engine warm up times.

The oil sandwich plates are available with threads to fit a range of popular oil filter applications:
3/4" UNF - BMW, Most Fords, VAG Group, Toyota
5/8" UNF - BMC A-series RWD (Sprite, Midget, Marina, Ital, Minor)
13/16" UNF - Rover K-series , Austin Montego / Maestro (O series engine), Buick (1959-1977), Cadilac V6 (1970 on), Oldsmobile 1960 on (excl V6), Pontiac (1968-1978)
M16 x 1.5 - Talbot, Simca Peugeot 1.1 litre
M18 x 1.5 - Vauxhall, Opel, American V8
M20 x 1.5 - Citroen, Peugeot XU, TU. Subaru Impreza, Honda Civic / Integra Type R, Mazda, Renault. Fiat. Alfa Romeo
Universal - Supplied with out a threaded centre bolt.A range of different threaded bolts can be found HERE.
